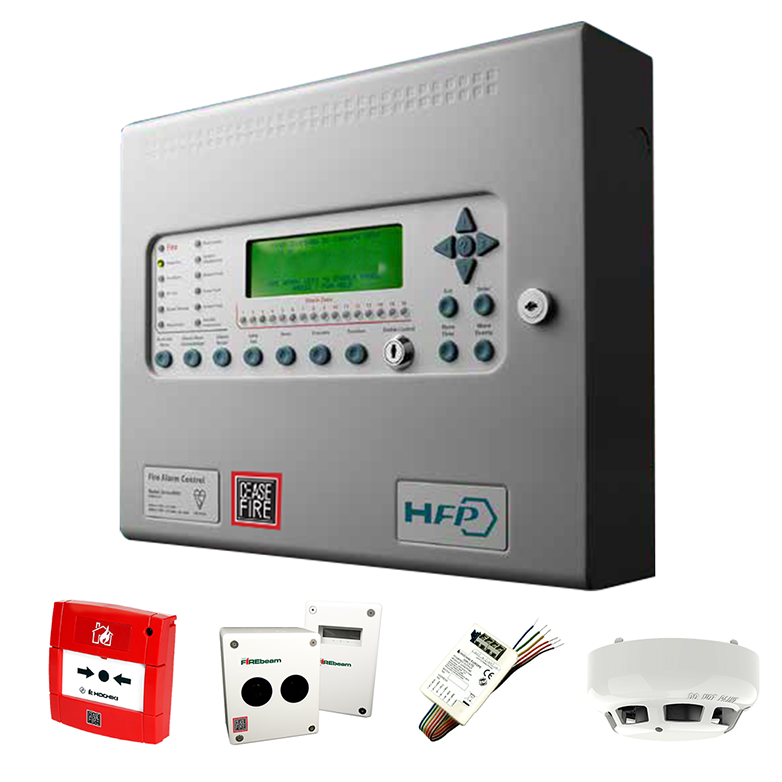

Addressable Fire Alarm System

The Addressable Panel (1-2 Loops) is an EN54-2/EN54-4 certified fire alarm control panel featuring 16 zonal LEDs, a 3A power supply, and a large graphic display. It includes 2 programmable sounder circuits, 5 inputs, 3 relays, and supports up to 512 programmable I/Os. Networkable with up to 64 panels, it offers a real-time clock, sensitivity adjustment, drift compensation, and loop-powered device support. The Addressable Panel (2-8 Loops) is an expandable system (2-16 loops) with a 500mA loop current, 4 programmable sounder circuits, 3 inputs, 5 relays, and up to 512 I/Os. It is USB-configurable, networkable up to 128 panels, and fully EN54-compliant. The SMARTX Single Loop Control Panel is a compact analogue addressable system with one loop and two conventional zones. It features noise-resistant ASR technology, day/night sensitivity profiles, supervised siren outputs, and a built-in communicator. With storage for up to 2,000 event logs, it allows easy manual device management.

• 16 zonal LED indicators
• 2 programmable sounder circuits
• 5 programmable inputs
• 3 programmable relays
• 3A power supply
• Large graphic display
• Real time clock
• Certified to EN54-2/ EN54-4
• Up to 512 additional programmable I/O via HFP I/O modules
• Powerful, network wide cause and effects
• Sensitivity adjustment and Drift Compensation
• Can be networked with HFP control panels
• Compatible with HFP and HFP AP-CRL repeaters
• Stores 500 last events in event log
• Dial up modem connection available
• Compact, stylish enclosure
• Installer friendly, removable equipment chassis
• Different language and character set variants available
• Fully EN54-2 and EN54-4 compliant
• 1 or 2 loop versions as standard
• Larger enclosure available
• 0, 16, 48 or 96 zone indicators
• Network up to 64 panels/repeaters
• 4 programmable sounder circuits as standard
• 5.25 amp power supply to EN54 part 4
• Large graphic display
• In-built help and alarm information screens
• Certified to EN54-2 / EN54-4
• Real time clock
• Supports loop powered sounders and beacons
• Sensitivity adjustment and Drift Compensation
• Soft-touch tactile buttons
• 2 programmable function buttons
• 3 programmable front panel mounted LEDs
• Improved Front loading printer (optional)
• Up to 512 programmable inputs/outputs per panel via 2 wire RS485 serial link (optional)
• Simple Windows® graphical configuration utility

• Compliant with EN54-2, EN54-4
• 2 to 8 loop or 2 to 16 loop versions
• 500mA loop current
• 4 programmable sounder circuits each rated at 2.5 A
• 5.25 A or 10.25 A, power supply options
• 3 programmable inputs
• 5 programmable relay outputs
• Up to 512 programme Input/ Output via optional plug in and serially connected expansion cards
• Hard wired fire and fault routing inputs and outputs
• Modular electronics
• Over 4000 sub address points per panel
• Option to “invert” inputs and outputs
• Powerful, standard configuration templates
• Network up to 128 panels
• Configurable via USB port to PC or memory stick
• 2 ancillary serial ports

• One Loop Analogue Addressable control panels
• 2 Conventional Zones (Maximum 20 detectors per zone)
• Advanced ASR (Active Signal Reshaping) loop detector for improved noise immunity in harsh environments
• Day/Night operation, separate profile for each week day. Changes ESP Sensitivity and Alarm verification
• Manual add/remove of loop devices (easy search with Ceasefire part number)
• 2 Supervised Siren Outputs
• Siren pattern selection for on board (switched) and loop devices
• Storage of up to 2,000 log events
• Built-in communicator (Ademco Contact ID)
• System LED indications: Power, Fault, Alarm, Pre Alarm, Delay Active, Sirens Silenced, On Test
