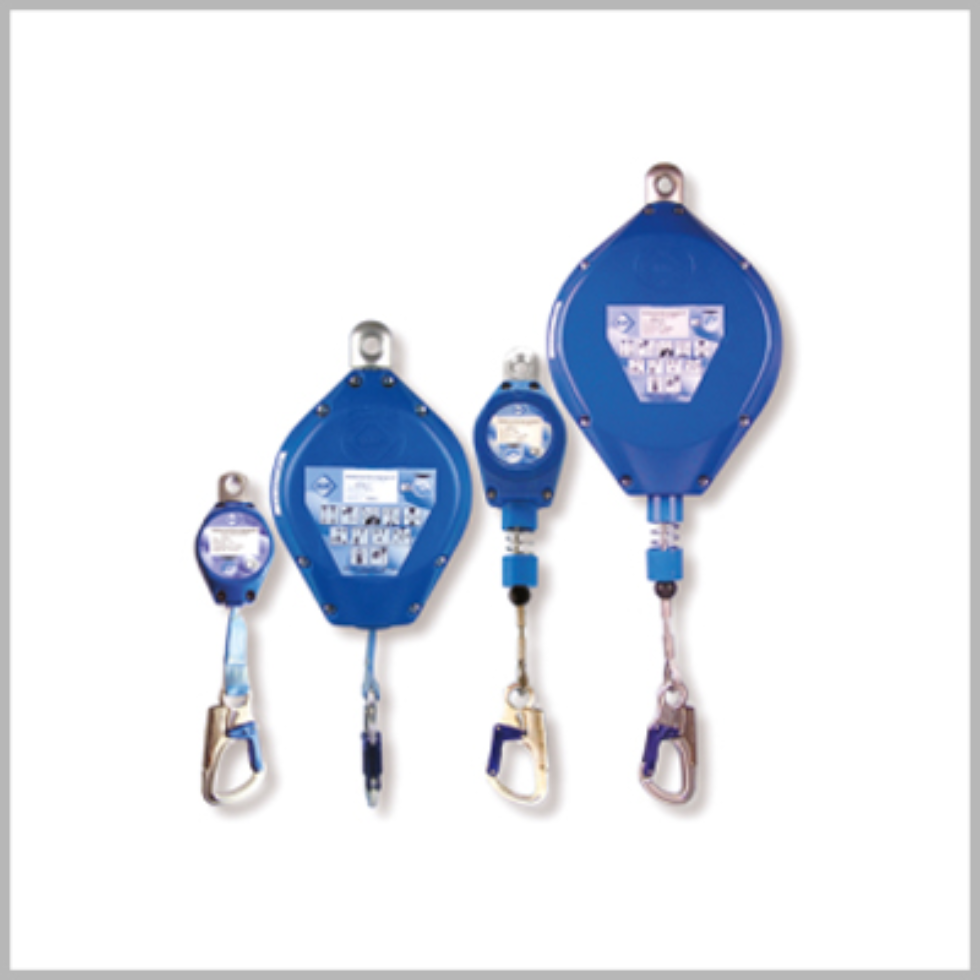

IKAR Flexible

IKAR Flexible

IKAR Flexible Dealers

Category

1. Lifeline:

  • Description: The lifeline is either webbing or galvanized steel.
  • Function: It is a sturdy, low-maintenance safety device designed to protect users at heights.
  • Materials:
    • Webbing: Soft and flexible material.
    • Galvanized Steel: Durable, corrosion-resistant steel.

2. Height Safety Devices Type HRA:

  • Description: These devices include a rotational attachment eye.
  • Function: The rotational attachment eye prevents the webbing or rope from twisting during use, ensuring smooth movement and operation.
  • Certifications: These devices have certifications that meet standards such as:
    • CSA Z259.2.2-98
    • ANSI/ASSE Z359.14-2012/LE-

3. Explanation for Device Names:

The device names follow a specific pattern to describe the characteristics:

  • H: Height Safety Device.
  • W: Swivel attachment point.
  • S: Galvanized steel lifeline.
  • B: Webbing lifeline.
  • P: Plastic housing.
  • Number: Length of the retractable connecting element.

Example: “HWB 3.5”

  • H: Height Safety Device.
  • W: Swivel attachment point.
  • B: Webbing lifeline.
  • 3.5: The length of the retractable harness strap is 3.5 meters.

4. IKAR Fall Protection Devices:

  • Description: These devices are designed to function effectively in any location or position.
  • Testing: They have been tested in simulated fall trials, including falls over an edge.
  • Durability: They are capable of withstanding forces typically encountered in height safety applications.

5. Descent Devices:

  • Description: Devices used for controlled descent in emergency situations.
  • Function: They ensure safe and reliable descent for individuals working at heights.

6. Lanyards:

  • Description: Lanyards are used to connect workers to a fall arrest system.
  • Example: CNB 11.060 2008 sharp edge type A. This refers to lanyards tested for sharp edges, ensuring that they remain functional even when exposed to such conditions.

7. Tripod and Accessories:

  • Description: A tripod is a key piece of equipment for securing height safety devices.
  • Accessories: Additional items or components that may be required for tripod systems.

8. Anchorage Devices:

  • Description: These devices are used to secure the worker’s fall arrest system to a reliable, stationary point.
  • Connecting Elements: Additional connecting elements are available, some with a surcharge.
  • Customization: Other connecting elements can be requested depending on specific needs.

9. Cantilever Arms and Accessories:

  • Description: Cantilever arms are used to provide a safe anchorage point for height safety devices.
  • Accessories: Additional items or attachments that may be necessary for a full cantilever system.



Order No. Connecting Device Housing Weight Dimensions (mm) Carabiner Hook (mm)
41-HWB 1,8 1.80 m Web* Aluminium 0.7 kg 237 x 78 x 60 140
41-HWB 2 (Sweety) 2.00 m Web* Aluminium 0.8 kg 240 x 84 x 61 140
41-HWB 2,8 2.80 m Web* Aluminium 0.8 kg 240 x 84 x 61 140
41-HWB 3,5 3.50 m Web* Aluminium 1.1 kg 270 x 88 x 64 140
41-HWPB 3,5 3.50 m Web* Plastic 1.2 kg 326 x 104 x 78 140
41-HWPB 5,5 5.50 m Web* Plastic 1.5 kg 300 x 130 x 78 140
41-HWPB 7 7.00 m Web* Plastic 1.8 kg 300 x 165 x 80 140
41-HWPB 9 9.00 m Web* Plastic 2.3 kg 335 x 168 x 88 140
41-HWPB 12 12.00 m Web* Plastic 3.4 kg 370 x 195 x 95 140
41-HWPB 15 15.00 m Web* Plastic 5.3 kg 400 x 195 x 95 140
41-HWS 4,5 4.50 m Steelrope* Aluminium 2.7 kg 400 x 130 x 78 185
41-HWS 6 6.00 m Steelrope* Aluminium 3.0 kg 400 x 145 x 80 185
41-HWS 9 9.00 m Steelrope* Aluminium 3.7 kg 455 x 160 x 85 185
41-HWS 12 12.00 m Steelrope* Aluminium 5.4 kg 490 x 190 x 95 185
41-HWS 18 18.00 m Steelrope* Aluminium 6.9 kg 540 x 220 x 97 185
41-HWS 24 24.00 m Steelrope* Aluminium 8.4 kg 575 x 250 x 97 185
41-HWPS 3 3.00 m Steelrope* Plastic 1.9 kg 390 x 104 x 78 185
41-HWPS 4,5 4.50 m Steelrope* Plastic 2.1 kg 400 x 130 x 78 185
41-HWPS 6 6.00 m Steelrope* Plastic 2.5 kg 420 x 145 x 80 185
41-HWPS 9 9.00 m Steelrope* Plastic 3.2 kg 460 x 168 x 88 185
41-HWPS 12 12.00 m Steelrope* Plastic 4.9 kg 500 x 195 x 95 185
41-HWPS 18 18.00 m Steelrope* Plastic 6.3 kg 540 x 220 x 97 185
41-HWPS 24 24.00 m Steelrope* Plastic 7.3 kg 570 x 250 x 97 185
Call Now
Chat With Expert
Inquiry Now

Description

1. Lifeline:

  • Description: The lifeline is either webbing or galvanized steel.
  • Function: It is a sturdy, low-maintenance safety device designed to protect users at heights.
  • Materials:
    • Webbing: Soft and flexible material.
    • Galvanized Steel: Durable, corrosion-resistant steel.

2. Height Safety Devices Type HRA:

  • Description: These devices include a rotational attachment eye.
  • Function: The rotational attachment eye prevents the webbing or rope from twisting during use, ensuring smooth movement and operation.
  • Certifications: These devices have certifications that meet standards such as:
    • CSA Z259.2.2-98
    • ANSI/ASSE Z359.14-2012/LE-

3. Explanation for Device Names:

The device names follow a specific pattern to describe the characteristics:

  • H: Height Safety Device.
  • W: Swivel attachment point.
  • S: Galvanized steel lifeline.
  • B: Webbing lifeline.
  • P: Plastic housing.
  • Number: Length of the retractable connecting element.

Example: “HWB 3.5”

  • H: Height Safety Device.
  • W: Swivel attachment point.
  • B: Webbing lifeline.
  • 3.5: The length of the retractable harness strap is 3.5 meters.

4. IKAR Fall Protection Devices:

  • Description: These devices are designed to function effectively in any location or position.
  • Testing: They have been tested in simulated fall trials, including falls over an edge.
  • Durability: They are capable of withstanding forces typically encountered in height safety applications.

5. Descent Devices:

  • Description: Devices used for controlled descent in emergency situations.
  • Function: They ensure safe and reliable descent for individuals working at heights.

6. Lanyards:

  • Description: Lanyards are used to connect workers to a fall arrest system.
  • Example: CNB 11.060 2008 sharp edge type A. This refers to lanyards tested for sharp edges, ensuring that they remain functional even when exposed to such conditions.

7. Tripod and Accessories:

  • Description: A tripod is a key piece of equipment for securing height safety devices.
  • Accessories: Additional items or components that may be required for tripod systems.

8. Anchorage Devices:

  • Description: These devices are used to secure the worker’s fall arrest system to a reliable, stationary point.
  • Connecting Elements: Additional connecting elements are available, some with a surcharge.
  • Customization: Other connecting elements can be requested depending on specific needs.

9. Cantilever Arms and Accessories:

  • Description: Cantilever arms are used to provide a safe anchorage point for height safety devices.
  • Accessories: Additional items or attachments that may be necessary for a full cantilever system.



Order No. Connecting Device Housing Weight Dimensions (mm) Carabiner Hook (mm)
41-HWB 1,8 1.80 m Web* Aluminium 0.7 kg 237 x 78 x 60 140
41-HWB 2 (Sweety) 2.00 m Web* Aluminium 0.8 kg 240 x 84 x 61 140
41-HWB 2,8 2.80 m Web* Aluminium 0.8 kg 240 x 84 x 61 140
41-HWB 3,5 3.50 m Web* Aluminium 1.1 kg 270 x 88 x 64 140
41-HWPB 3,5 3.50 m Web* Plastic 1.2 kg 326 x 104 x 78 140
41-HWPB 5,5 5.50 m Web* Plastic 1.5 kg 300 x 130 x 78 140
41-HWPB 7 7.00 m Web* Plastic 1.8 kg 300 x 165 x 80 140
41-HWPB 9 9.00 m Web* Plastic 2.3 kg 335 x 168 x 88 140
41-HWPB 12 12.00 m Web* Plastic 3.4 kg 370 x 195 x 95 140
41-HWPB 15 15.00 m Web* Plastic 5.3 kg 400 x 195 x 95 140
41-HWS 4,5 4.50 m Steelrope* Aluminium 2.7 kg 400 x 130 x 78 185
41-HWS 6 6.00 m Steelrope* Aluminium 3.0 kg 400 x 145 x 80 185
41-HWS 9 9.00 m Steelrope* Aluminium 3.7 kg 455 x 160 x 85 185
41-HWS 12 12.00 m Steelrope* Aluminium 5.4 kg 490 x 190 x 95 185
41-HWS 18 18.00 m Steelrope* Aluminium 6.9 kg 540 x 220 x 97 185
41-HWS 24 24.00 m Steelrope* Aluminium 8.4 kg 575 x 250 x 97 185
41-HWPS 3 3.00 m Steelrope* Plastic 1.9 kg 390 x 104 x 78 185
41-HWPS 4,5 4.50 m Steelrope* Plastic 2.1 kg 400 x 130 x 78 185
41-HWPS 6 6.00 m Steelrope* Plastic 2.5 kg 420 x 145 x 80 185
41-HWPS 9 9.00 m Steelrope* Plastic 3.2 kg 460 x 168 x 88 185
41-HWPS 12 12.00 m Steelrope* Plastic 4.9 kg 500 x 195 x 95 185
41-HWPS 18 18.00 m Steelrope* Plastic 6.3 kg 540 x 220 x 97 185
41-HWPS 24 24.00 m Steelrope* Plastic 7.3 kg 570 x 250 x 97 185
